Oписание продукта

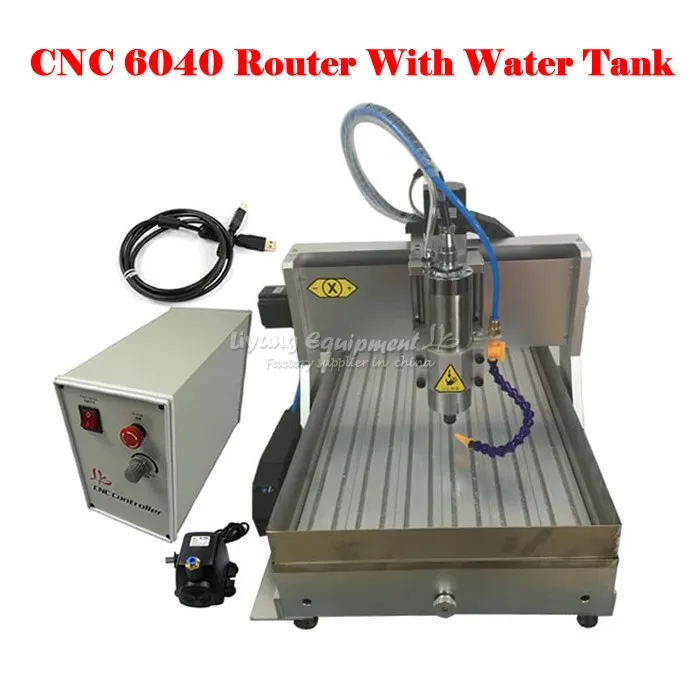

CNC Router Engraving Miling Machine CNC 6040 USB 1.5KW, water tank for hard metal wood , no custom duty to Russia



Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

CNC 6040 with water tank (9)

Technical Parameters
LYCNC6040Z-VFD1.5KW 3axis engraving machine parameters:
Machine Dimensions: 810X640X480mm
Rack material: 6061 and 6063 Hard aluminum alloy
 (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area: 600X400mm
Z-Axis Stroke: 80mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness: ≤80mm
Rail type: Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw: Ball screw 1605, Pitch 4mm
Spindle motor: 1.5KW VFD water cooling spindle , 0-24000r/min
Collet type: ER11,1/8"(3.175mm) Collet
Stepper motor and drive: two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed: 4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy: 0.03mm
Communication interface: USB port
Software Compatability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code: G code/.nc/.ncc/.tab/.txt
Machine weight: 70kg




 The machine already assembled & tested well,
can directly use after take them out from package

Packing list:
1× CNC 6040 Engraving machine
1× Control box
1× Power cable
1× control line
1× USB port cable
1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)
1× tool auto-checking instrument
2× water pump
1× water tank (with pipes)
1× water spray nozzle
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
CNC 6040 with water tank (13)CNC 6040 with water tank (20)CNC 6040 with water tank (10)CNC 6040 with water tank (11)CNC 6040 with water tank (12)




   CNC 6040 3axis (17)CNC 6040 3axis (18)CNC 6040 3axis (19)CNC 6040 3axis (20)CNC 6040 3axis (21)
CNC 6040 3axis (22)CNC limit switchCNC 6040 3axis (23)CNC
