Oписание продукта

Focus FC-7688 Wired Alarm System 8 wired zones 32 wireless zones 88 Bus zone Landline GSM internet TCP IP wired security system

Pacakge Included :

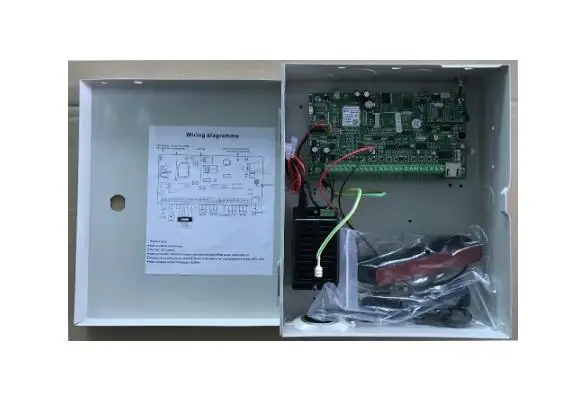

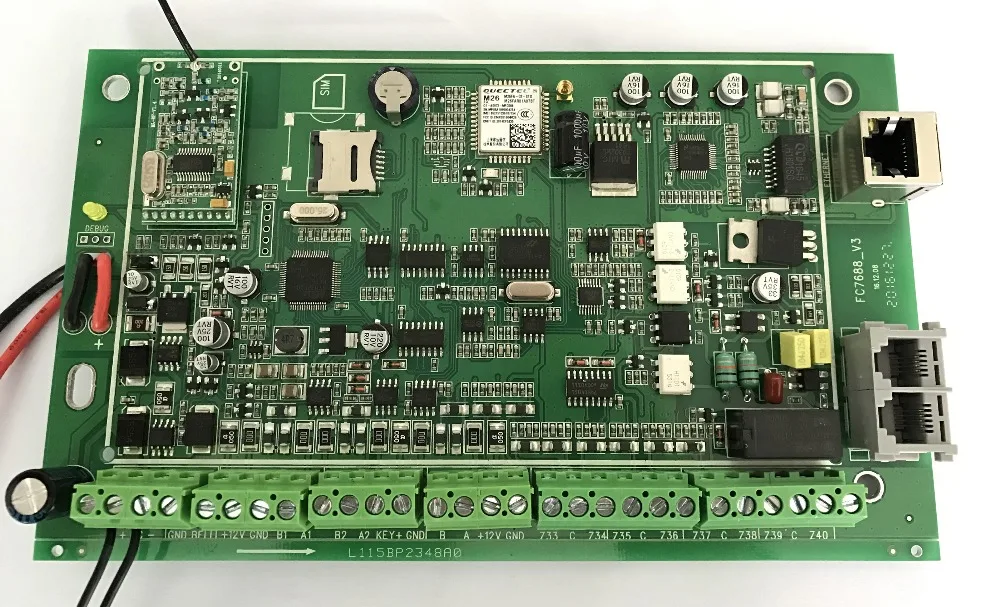

Control Panel main board with Cabinet* 1 piece
Wired Touch LCD Control Keypad * 1 piece
AC/AC Transformer *1 piece

Wireless remote control * 2PCS
Accessories: Antenna 1 pc, EOL Resistors 1 bag.
(please note that backup battery is not included)

WebIE login video show: https://www.youtube.com/watch?v=nNFBCLANTMI&feature=youtu.be

Features

Timing arm and disarm: 2 groups of time arm and disarm time, you can assign

any one or several partitions effective;
★Can set 4 separate area, 32 wireless zone, 8 wired zone, 88 bus zone
expandable. Totally support 128 zones.
★Support 1 admin password, 1 master user password, 32 user password,
WEB log-in password.
★Support 8 remotes, 4 bidirectional wireless keypad, 8 wired keypad.
★Support 2 network CMS platform, 2 CMS phone #. Can set backup mode ,
both-report mode.
★Support 4 follow-me phone # for voice phone call and SMS message
★Support APP remote control.
☆ Support Partition activate.

Power supply
15VDC3A switch power
※Only can use 12VDC 7AH sealed lead-acid battery, change battery every 3-5 years.
※With 1 keypad, power consumption 250mA, support working for 16 hours
※Without connecting the siren, you can connect the 2. 2K resistor to clear the
sirne fault.
※Total power consumption (keypad, auxiliary power, siren) can’t exceed max. power
consumption of control panel
※Max. rechargeable current of battery: 350MA
※When using a wired or bus zone, you need to set the zone attribution in the
zone attribution settings.
Warning: Please insert SIM card before installation, then power on.

SPECIFICATION

Art No.:FC-7688
Dimensions360*265*80MM
Housing MaterialsMetal Box
Installation LocationIndoor Use Wall Mounted
LCD SizeNO
Menu Voice GuidanceYES
Kit Weight4.30KG(Without Keypad)
Kit Accessories Included
  FC-7688 Panel*1
  F-7668 LCD *1
System NetworkGSM/PSTN/TCP/IP
Number Of Users32
Number Of Wired Zones8
Number Of Bus ZonesRS485 Cable 128PCS

Number Of Wireless Remotes Or

Wireless Keypad Controls

16
Number Of Wired Keypad10 (Parallel Connection)
Number Of Wireless Zones32
Number Of Voice Phones8
Number Of Wireless DoorbellNO
Number Of Areas8
Number Of Wireless Switch16CH
Number Of Wireless Siren

Dual Way Siren *1

One Way Siren No Limited

Outputs1 PGM Port
GSM AntennaExternal GSM Antenna
Event Log Inquiry512
Radio Frequency433MHz or 868MHz
Intergrated SirenNO, External Siren Added
Backup Battery Type12V DC, 7AH Lead Acid Battery
Max Receiving Range100M
Max Sending Range100M
Power Supply Unit15VDC3A switch power
ProtocolsAdemco Contact ID
Tamper MonitoringYES
Mobile Client IOS /andriod

ST-panel

WebIENO
Meian CMSServer: wode110.com
Tel-Line CMS2 CMS
CertificationsCE/FCC/ROHS

46

IMG_6444(1)

FC-7688 Adiagram

61+S503nBML._SL1024_61ha+uMFsxL._SL1024_












11



1213







web 1

IE web 2



Remote control 1

Remote control

APP name: ST-Panel on APP/Google store

APP

 APP interface

APP



Sorry, email function doesn\'t work so far !!

How to expand the wired zones .

1. first, you need to buy our FC-7601

FC-7601

2. Connect it to the bus zones ( FC-7688 has 88 bus zones).

3. Connect the wired sensors to FC-7601

FC-7601 wired zones

expand the zones
