Oписание продукта

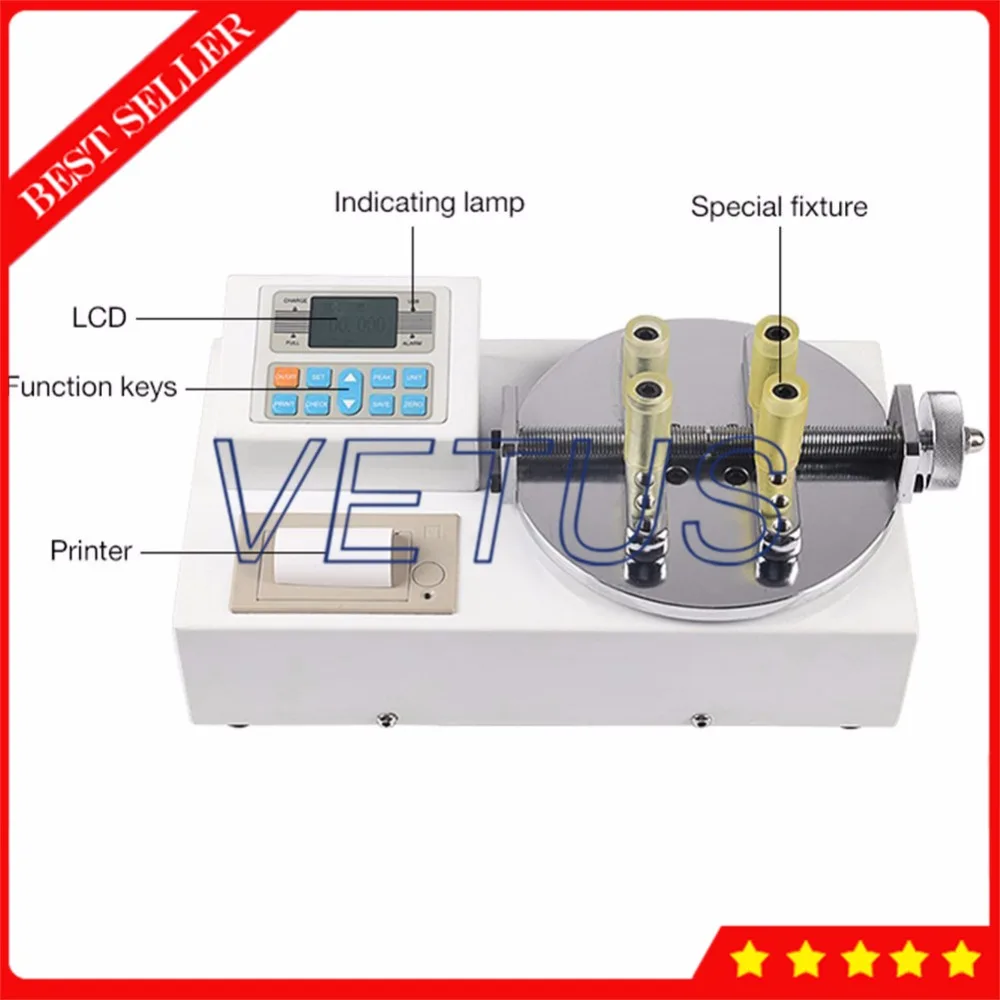

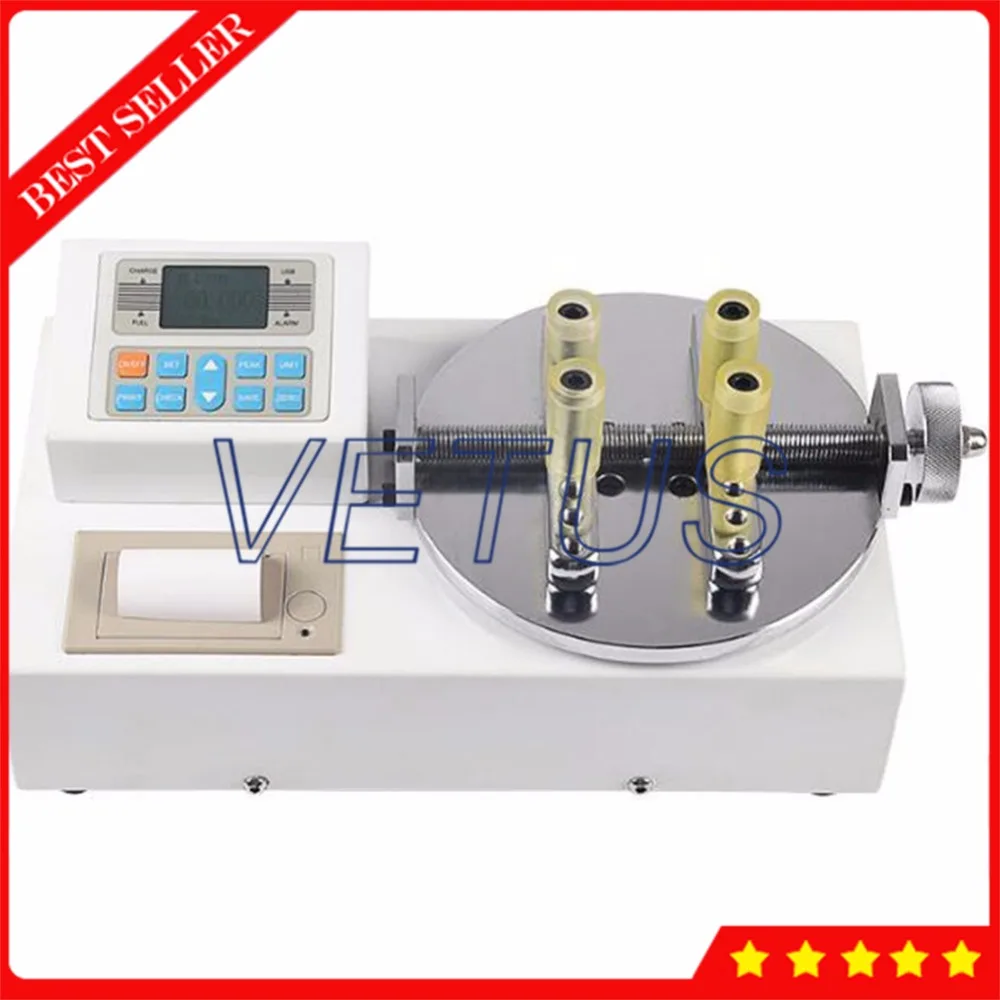

Intelligent Multi-functional Digital Bottle Lid Torque Meter with Printer Cap Torque Testing Machine ANL-P1

202123221

Function:
Digital bottle lid torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Main features:

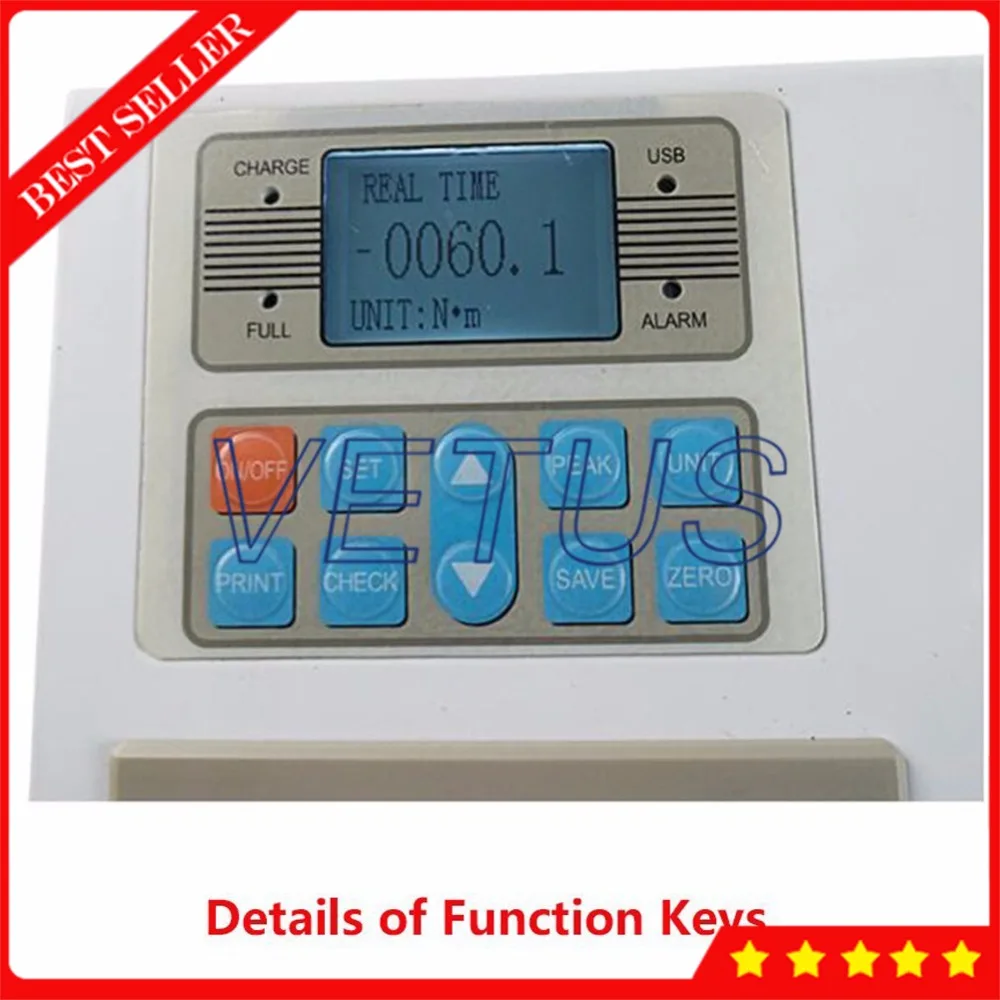

1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and
visual alarm.
4. Three units can be switched each other (N·m,kgf·cm,Ib·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to the
computer, computer synchronous display test force graph and the detailed test process, can save,
print, doing all sorts of analysis.
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.
Operating environment:
1. Operating temperature: -10°C ~ 40°C
2. Operating humidity: ≤90%RH
3. No vibration source around and no corrosive environment

2

Shipping Policy : Battery and Liquid not included during the shipping

Type

Index
With printer ANL-P1ANL-P2ANL-P3ANL-P5ANL-P10ANL-P20
No printer ANL-WP1ANL-WP2ANL-WP3ANL-WP5ANL-WP10ANL-WP20
Measuring range / Division value N·m 1.0000/0.0001 2.0000/0.0001 3.0000/ 5.0000/ 10.000/ 20.000/
0.0001 0.0001 0.001 0.001
Kg·cm 10.200/ 20.400/ 30.600/ 51.000/ 102.00/ 204.00/
0.001 0.001 0.001 0.001 0.01 0.01
Lb·in 8.850/ 17.700/ 26.550/ 44.250/ 88.50/ 177.00/
0.001 0.001 0.001 0.001 0.01 0.01
Precision ±1%
Peak Value Sampling Frequency 2000HZ
Power 8.4V  1.2VX7  Ni-MH Battery group
Charging Time 4~6 Hours
Continuous using time of battery About 10 Hours
Battery life ≥300 times
Size 400mm×200mm×200mm
Net Weight 12KG
Power adapter Input:AC 220V 50HZ   Output:DC 10V 300mA
