CM 8826FN Digital F and NF Type Coating Thickness Tester Gauge with Range 0 to 1250um Paint Coating Thickness Meter

CM 8826FN Digital F and NF Type Coating Thickness Tester Gauge with Range 0 to 1250um Paint Coating Thickness Meter
  • Продавецshop.widaryanto.info
  • Список ценUS $180.50piece
  • Продажная ценаUS $180.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (948)

Oписание продукта

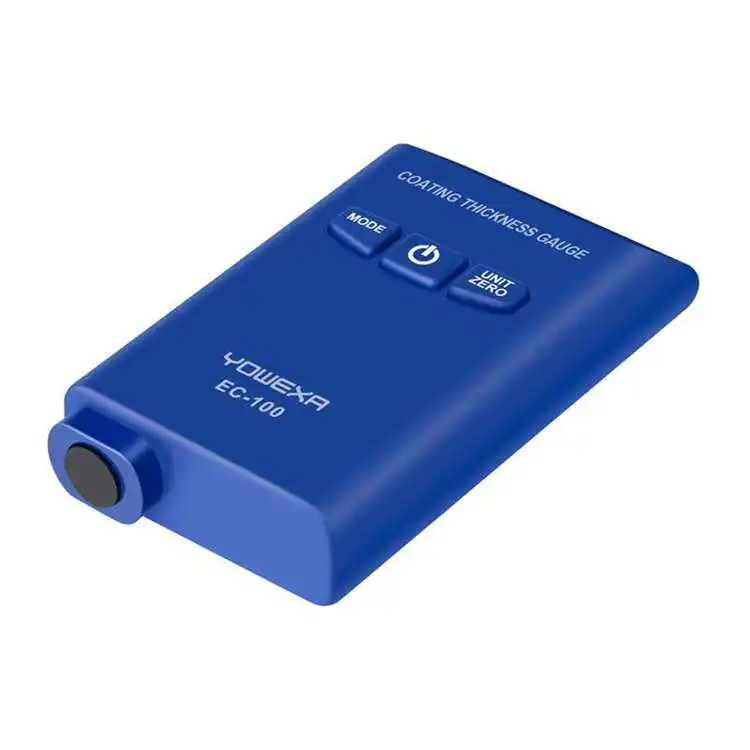

EC-100 Digital Coating Thickness Gauge LCD Display mm/mil/um Auto Car Paint Thickness Meter F/N Film Thickness Tester 0-2000um



2.2719144()__2.2719146()__2.2719151()__2.2719149()__

Introductions:

This gauge is ultra low cost coating thickness gauge and can mainly be used to
measure car’s paint coating thickness. It is used for non-destructive coating
thickness measurement of non-magnetic coatings on steel and insulating
coatings on non-ferrous metals.
0
Replacing the Battery:
Place the gauge upside down on a suitable surface, raise the lid of the
compartment, remove battery, insert new battery according to the
positive and negative poles and close the lid.
Measurement Step:
Step 1. Prepare the sample to be measured.
Step 2. Press POWER key to power on, and keep probe away from any metal.
Step 3. Reference to the “Zero Calibration” if need to calibrate the gauge.
Step 4. Start measuring. Place the probe on the sample vertically and rapidly,
and after one beep, raise the probe rapidly. Readings will be display on LCD.
Step 5. Do next measurement according to step 4.
Step 6. Press POWER key to power off. If not any operations within 2 min.,
the gauge will power off automatically.
Zero Calibration:
a. Press and hold “ZERO” until hearing “beep...beep beep...”. The LCD
will flash “ZERO” symbol.
b. Place the probe on uncoated sample and raise it after one beep.
c. Repeat step b several times to obtain mean value.
d. Finished. Press “ZERO” to exit calibration mode.
Unit:
Press the UNIT key to select the shown unit( μm, mm or mils) for the readings.
Probe Mode
Press the MODE to select the probe mode(Including AUTO, Fe and Nfe).
In AUTO, the probe can test all substrate automatically(Recommended)
In Fe, the probe can only test on ferrous substrate.
In NFe, the probe can only test on non-ferrous substrate.
Auto Power off:
The device will power off automatically within 2 min when there are not any
operations. Before power off automatically, the clock sign on LCD will flash.
Trouble Shooting
If the instrument is no response and can’t be turned on, you can remove the
battery, and a few minutes later, reinstall the battery, and try again. Press and
hold “MODE” until “RES” shown on the LCD to reset to factory settings. If the
problem persists, please contact with your supplier for help.

2

Package Includes:

1pc Coating Thickness Gauge
1pc Aluminum Plate
1set Plastic Film(1pc 0.05mm,1pc 0.1mm,1pc 0.25mm,1pc 0.5mm,1pc 1mm)
1pc User Manual
1pc Package Box
