Oписание продукта

LINK-MI TV10 2x2 2x5 2x3 3x3 Video Wall Controller HDMI VGA AV TV Video Processor 2x4 4x2 3x2  10 TV shows a screen splicing

LM-TV10 01

 LM-TV10 2x5 Video Wall Controller is designed to be a truly in/out modular video wall processor, to capture, AD convert, route, distribute all-format signal to multiple video wall, including LCD TV,DID, DLP, Plasma, etc., while maintaining a true digital signal.

 LM-TV10 2x5 Video Wall Controller with many different video interfaces, include HDMI, VGA, AV, and it is can decode video(like RMVB),audio(like MP3),Photo(like JPG) by itself through USB interface. each video with audio can be switched together. output HDMI interface, resolution is 1080P or 720P, choosed by user.

 LM-TV10 2x5 Video Wall Controller can be controlled by remote, button and RS232.

P-TV04#TN701-900

Users are more simple, more intuitive, more humane in operation , designed infrared remote control, the center control can also be controlled via RS-232. User through buttons or the remote control process one-click shortcut control and full-function.

Features
1,Quad-screen processing
     LM-TV10 supports 6-way HDMI output signal, connected to 10 LCD TV or other display devices such as projectors, DLP, plasma and other display unit, the six display unit spliced to form a large screen. LM-TV10 can be customized 2x5 5x2 2x2,1x4,4x1,2x3 2x3 3x3 2x4 4x2 and other mosaic pattern according to the user\'s requirements.
2, input signal
     Supports 1 composite video, 1 VGA, 1 HDMI, 1 USB four signal inputs totally, HDMI and USB signal interface with audio decoding, composite video and VGA signal plus the corresponding audio binding interface, all the input video signal can achieve synchronized output switching with audio.
3, Mirroring
     Compared with ordinary video wall controller, LM-TV10 contain 180-degree image flip function for each screen. A up row of LCD TV rotated 180 degrees, thereby significantly reducing LCD splicing gap, reducing image distortion caused by the large seam , as shown below:
1

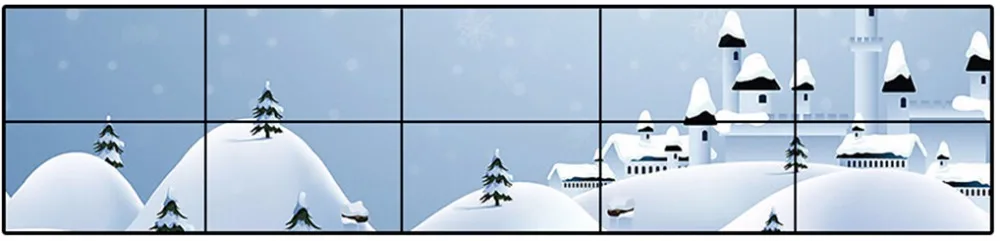

4,Edge mask function
     All display unit has some physical border gap, the image will appear pull-apart on visually and feel very unnatural if no edge shielding; past the edge mask processing ,the image without deformation, stretching, more natural and realistic . As contrast image shown of before and after handling the shield edge;
2
5, U disk play
Our products enable USB playback and stitching. After the basic functions of LCD splicing, users achieve simple video or picture format stitching playback, on the USB interface of our products just need to insert a U disk , no need to configurate a computer or other playback devices, simple and practical .
USB can support a number of popular video, pictures, MP3, TXT documents;
it can support the selected video or all Play;
It can support all video round robin play, pause, fast-forward, the program list and other functions;
3
5,USB transmit function
 Product can support USB transmit and joint function. After finishing LCD joint basic function, user can set merely video or image joint pattern. It\'s simple and useful, no need extra allocation a computer or other broadcast equipment, only we need to do is insert a U disk in USB interface of our product.
1, USB can support common video,image,MP3,TXT document;
2, Can select or unselect
3,  All video can support play in order or cycle,pause,speed,program list
4,  6,Key function
5,  Realize shortcut switch VIDEO, USB, HDMI,VGA;
6,  Shortcut switch between joint and unjoint
7,  Adjust the wide and high of edge blanking
8,  Output volume control
9,  Adjust brightness, contrast ratio, color saturation
10,  Setting the Speed of USB , next song , program choose
11,  The other function
LM-TV12
6, Remote control
The  remote control specially customized for LM-TV10, all functions correspond with it\'s buttons exactly. All functions can be done on the remote control like settings, switching, adjustable, and use ultra-sensitive design, remote control distance up to 7-10 meters.
4

Panel Description
-3-1
Specification
1

Product Overviews

-4-2

Packing Contents

1. Main Unit. 2x5 Video Wall Controller

2. 1pcs Remote Controller

3. 1pcs Power Adapter

4. 1pcs User Manual

5. 1pcs IR Cable

-2
