DIY Access Control Kit Waterproof&Touch Keypad Rfid Door Access Control With NC Electric Strike Lock+ Power Supply+Door Bell

DIY Access Control Kit Waterproof&Touch Keypad Rfid Door Access Control With NC Electric Strike Lock+ Power Supply+Door Bell
  • Продавецshop.widaryanto.info
  • Список ценUS $69.99piece
  • Продажная ценаUS $69.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (193)

Oписание продукта

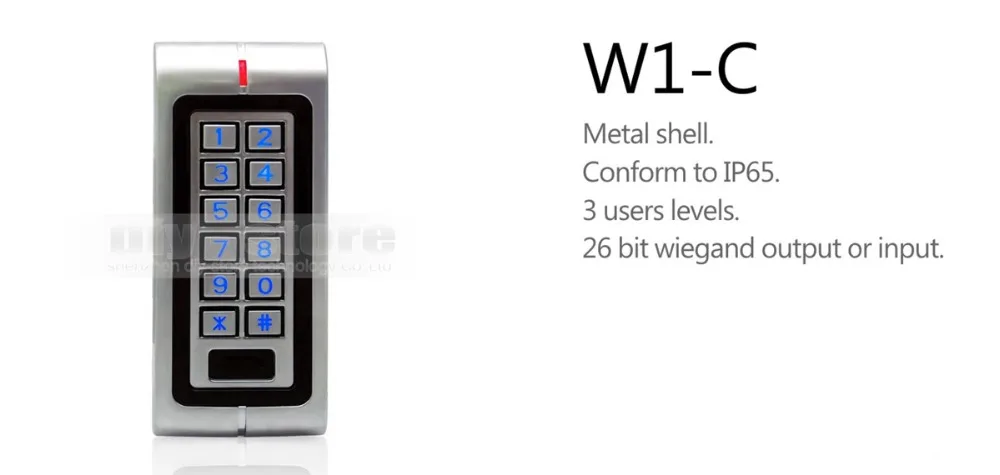

Waterproof RFID 125KHz Access Control Reader Keypad  With Metal Case High-performance







The W1 is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in s strong, sturdy and vandal proof zinc alloy electroplated case.



These features make W1 an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.



  • Waterproof, conforms to IP68
  • Built in Buzzer
  • Backlight keypad
  • 2000 users, supports Card, PIN, Card + PIN.
  • Wiegand 26 input for the connection of an external reader
  • Wiegand 26 output for connect to a controller
  • Strong Zinc Alloy Electroplated anti-vandal case
  • Full programming from the keypad
  • Can be used as a stand alone keypad
  • Dual units can interconnected and interlocked
  • External readers can be any make of card reader with a 26 bit output, i.e. HID, Mifare,EM and so on.



Specifications:




  • Intput Voltage:12VDC
  • Input current: <60 mA
  • User Capacity: 2000 User Card, 1 Password
  • Card Type: EM RFID ID compatible card
  • Frequency: 125Khz
  • Card Reading Distance: 3-6cm
  • Dimension: 135mm*58mm*25mm
  • Net weight: 550g
  • Wiring connections: Electric Lock, Exit Button,DOTL, External Alarm









W1-CW1-td1W1-td4W1-td2







HTB1yFvcIpXXXXbYXFq6xXFXXXc











What\'s in:





  • 1 x Access control keypad
  • 2 x ID card
  • 1 x User manual







HTB1_SXeGFXXXXXGXVXXq6x
