Oписание продукта

LINK-MI LM-TV09 HDMI+VGA+AV+USB LED/LCD 3x3 Video Wall Controller Support 180 Degree Rotation

TV09-





LM-TN701 1



Users are more simple, more intuitive, more humane in operation , designed infrared remote control, the center control can also be controlled via RS-232. User through buttons or the remote control process one-click shortcut control and full-function.

Features
1,Quad-screen processing
     LM-TV09 supports 9-way HDMI output signal, connected to 9 LCD TV or other display devices such as projectors, DLP, plasma and other display unit, the 9 display unit spliced to form a large screen. LM-TV09 can be customized 2x2,1x4,4x1, 3x3 2x4 4x2 2x3 2x3 2x2 and other mosaic pattern according to the user\'s requirements.
2, input signal
     Supports 1 composite video, 1 VGA, 1 HDMI, 1 USB four signal inputs totally, HDMI and USB signal interface with audio decoding, composite video and VGA signal plus the corresponding audio binding interface, all the input video signal can achieve synchronized output switching with audio.
3, Mirroring
     Compared with ordinary video wall controller, LM-TV09 contain 180-degree image flip function for each screen. A up row of LCD TV rotated 180 degrees, thereby significantly reducing LCD splicing gap, reducing image distortion caused by the large seam , as shown below:
1
4,Edge mask function
     All display unit has some physical border gap, the image will appear pull-apart on visually and feel very unnatural if no edge shielding; past the edge mask processing ,the image without deformation, stretching, more natural and realistic . As contrast image shown of before and after handling the shield edge;
2
5, U disk play
Our products enable USB playback and stitching. After the basic functions of LCD splicing, users achieve simple video or picture format stitching playback, on the USB interface of our products just need to insert a U disk , no need to configurate a computer or other playback devices, simple and practical .
USB can support a number of popular video, pictures, MP3, TXT documents;
it can support the selected video or all Play;
It can support all video round robin play, pause, fast-forward, the program list and other functions;
3
5,USB transmit function
 Product can support USB transmit and joint function. After finishing LCD joint basic function, user can set merely video or image joint pattern. It\'s simple and useful, no need extra allocation a computer or other broadcast equipment, only we need to do is insert a U disk in USB interface of our product.
1, USB can support common video,image,MP3,TXT document;
2, Can select or unselect
3,  All video can support play in order or cycle,pause,speed,program list
4,  6,Key function
5,  Realize shortcut switch VIDEO, USB, HDMI,VGA;
6,  Shortcut switch between joint and unjoint
7,  Adjust the wide and high of edge blanking
8,  Output volume control
9,  Adjust brightness, contrast ratio, color saturation
10,  Setting the Speed of USB , next song , program choose
11,  The other function
LM-TV12
6, Remote control
The  remote control specially customized for LM-TV09, all functions correspond with it\'s buttons exactly. All functions can be done on the remote control like settings, switching, adjustable, and use ultra-sensitive design, remote control distance up to 7-10 meters.
4

Interface diagram
-4
video-wall-processor-TV08-Full-HD-1080p-Mixed-HDMI-splitter-USB-VGA-Composite-HDM-Support-2X2 (4)



3

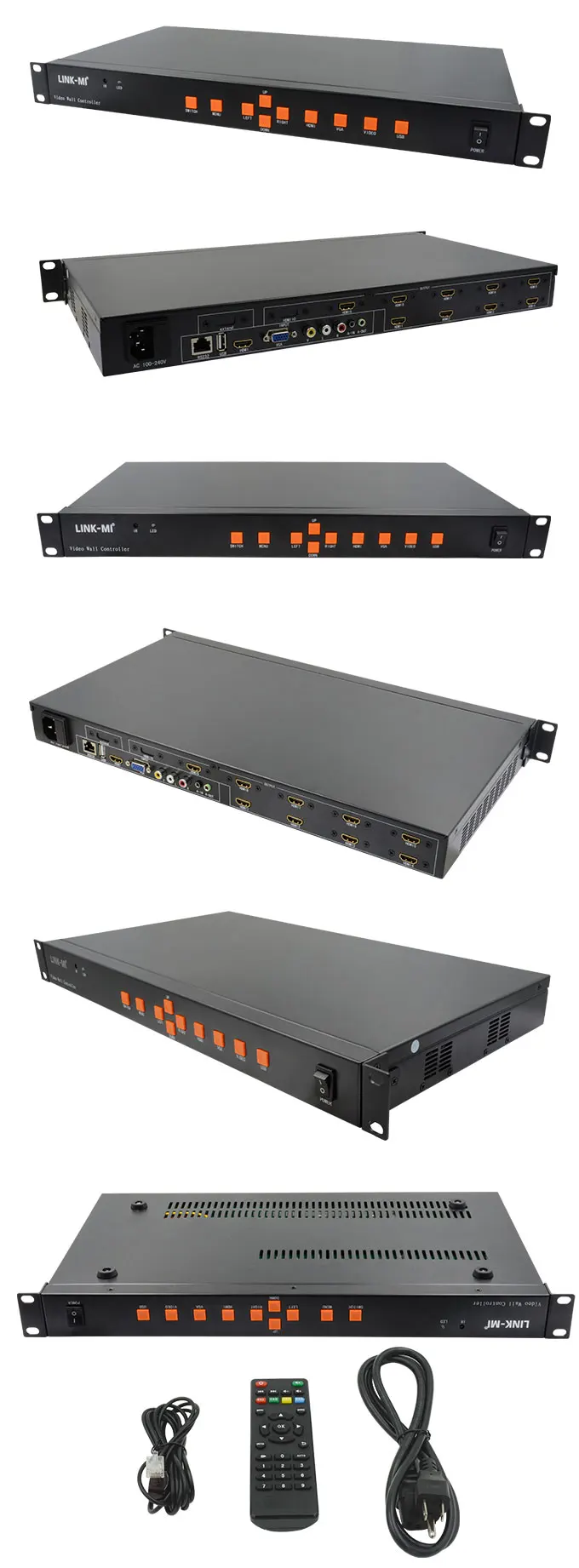

Product Picture

LM-TV09





Features
 Truly in/out modular design--- truly concept modular, in/out boards
 All-format signal capture--- including composite video, VGA, DVI, HDMI etc
 Fully-digital processing channel inside --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.
 Individually supports 180° rotation
 Easy maintenance--- suitable for all environment
 Various control port---RS232, remote controller
 HDCP compliant---HDMI 1.3, HDCP protection
 Support DVI1.0

Specification
LM-TV09


7, Customizable multi-screen joint(Following are part of customizing pattern)

2

Packing Contents
1. Main Unit. 1pcs 3x3 Video Wall Controller
2. pcs Power Adapter
3. 1pcs Remote Controller
4. 1pcs User Manual
5. 1pcs IR cable

Packaging and Shipping
