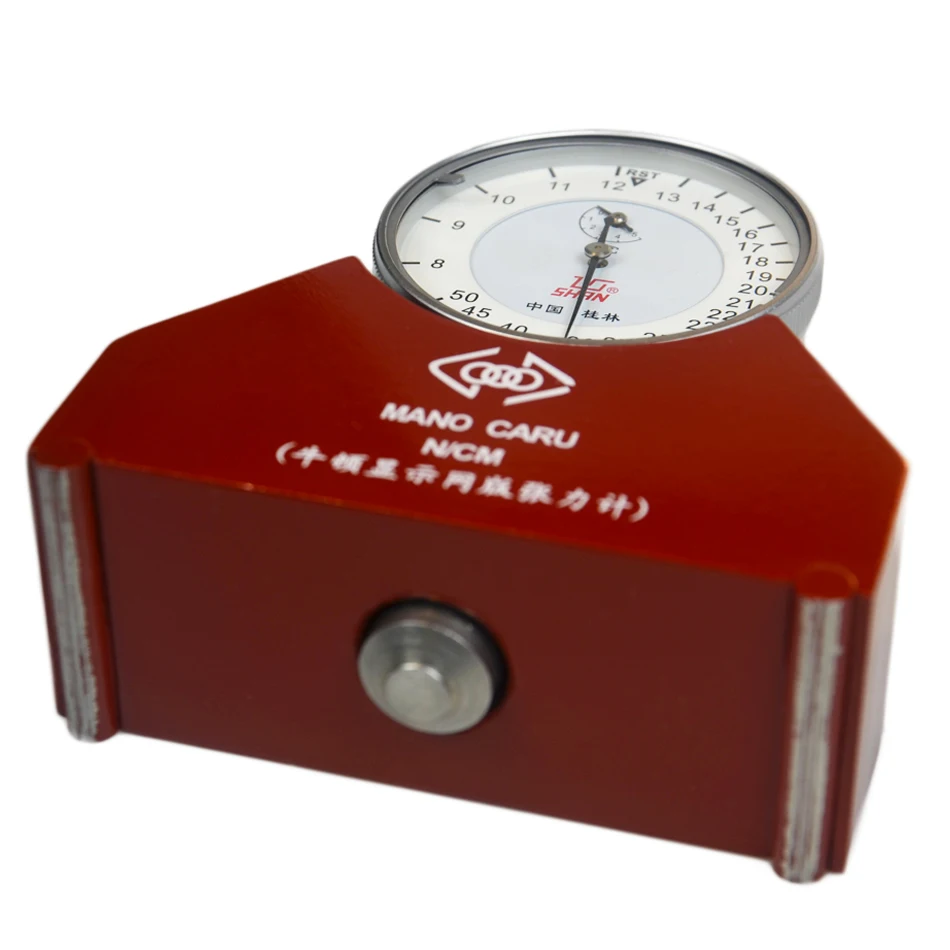

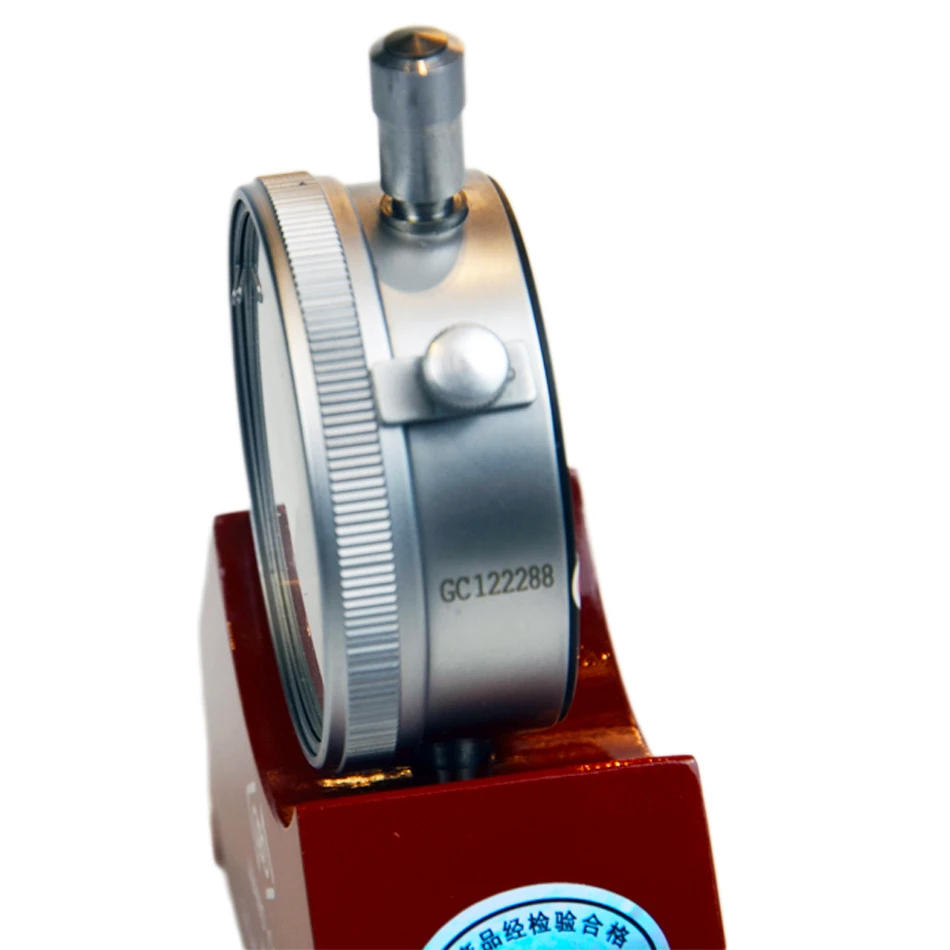

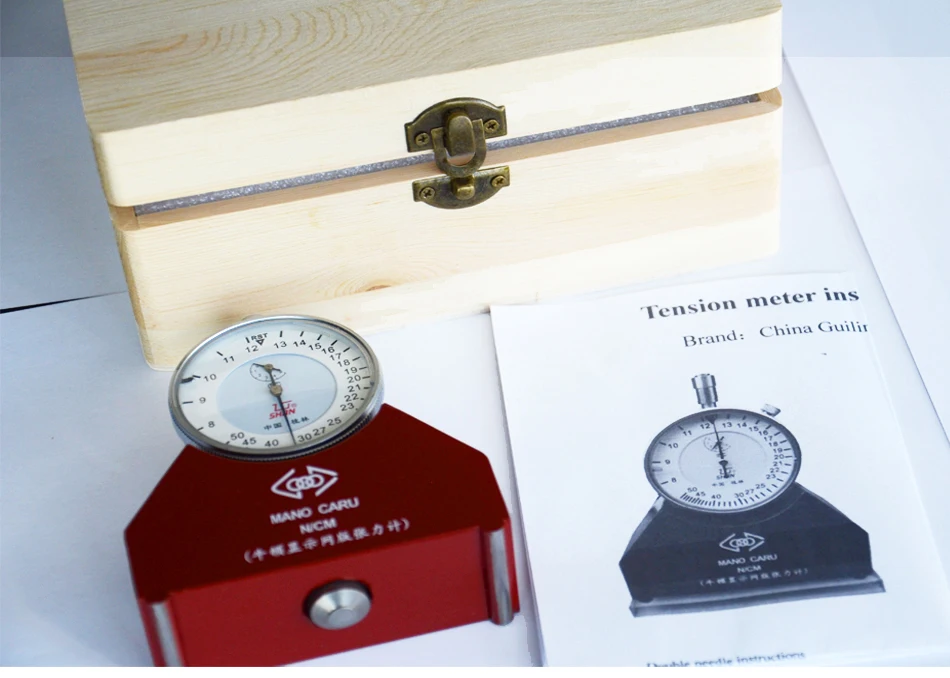

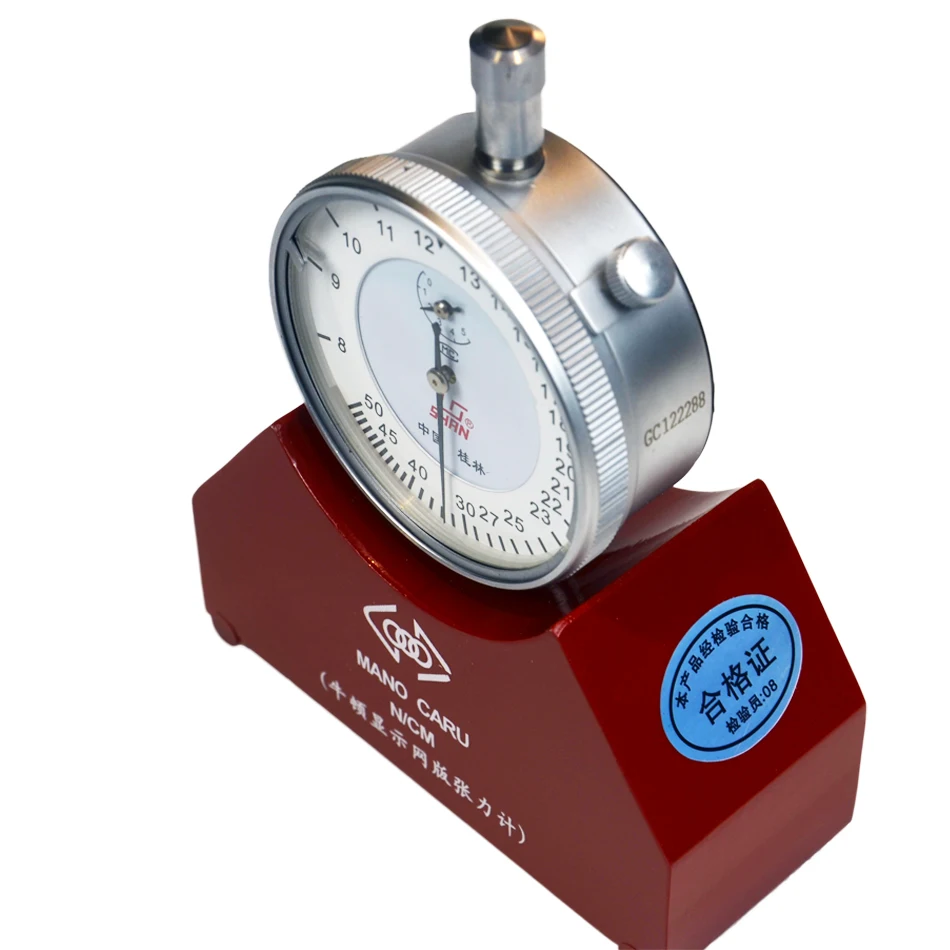

Screen Mesh Tension Meter Newton Pressure Meter

Tensometer Gauge Tension Measuring Tool Manometro 8-50N





123_01

123_03_01

tension-meter-4tension-meter-10tension-meter-18tension-meter-20

123_03_02

123_03_03







Specification:
Dimensions:114x76x45mm

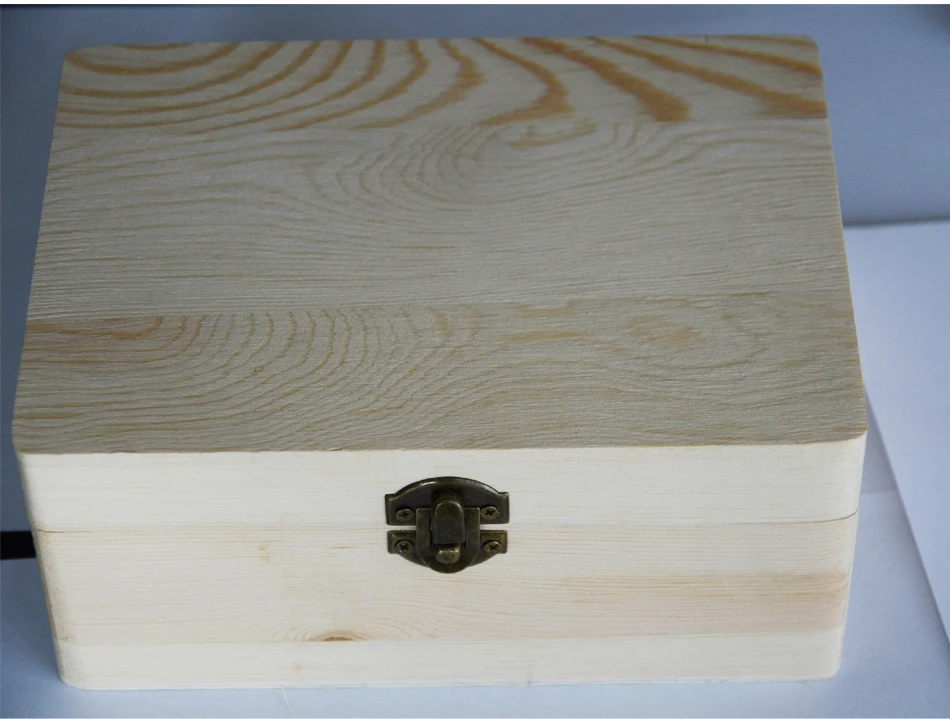

Carrying case:228x203x76mm
Weight:Meter 17.5 oz./Case 12 oz.
Measuring range:8~50N/cm
Measuring Value :N/cm
Error/Deviation: +/- 1.5 Newton scope

Instruction:
1.Before using please put the tension meter on the glass and turn round the dial to make the pointer return to zero.
2.Flick the silk screen during measuring, the indication when the pointer stopped is the tension of the silk screen.
3.Tension meter is precision meter, fall and touch is forbidden, be careful during using.
4.Tension meter is corrected precisely,dismounting alone is not allowed.
5. Can’t touch the bottom side contactor by hand, put the machine vertically without using.
6. The Newton indication is the indication of the tension’s contactor, the error is  +/-   1.5N.
7 The indication of the second circle is the measured value during measuring

Usage:
Before each use, the first detection of the instrument and then straighten the zero adjustment board, see indicates needle is not referring to the zero scale position, if the zero-scale ,can be used. If it is not zero in on the scale, you need to adjust in order to use, adjustment method is the instrument flat on the zero adjustment board, and then hand pull up the probe main shaft, then torsion the dial lock loose, the the dial rotate left and right, let indicates for the quasi-zero-scale bit and then dial lock locking, you can use. In the stretching process, when the mesh stretched to a certain extent, you can use the instrument to measure, measuring instrument placed in the wire-line, hand-in instrument pat mesh around a few times, when the instrument is stabilized pointer scale referring to the screen tension was the point. Requires measuring five points in the wire-line (that is, four corners and in the middle mesh of 1, taking their average value is then the tension of the mesh. When measuring tension in the measurement, the instrument should follow the network cable latitude and longitude 45 direction display, so you can measure the value of latitude and longitude lines common tension For tension measurement of longitude or latitude, simply press the direction of the line is placed in the instrument can measure the tension of the line
(Note: because of the nature of the rebound screen at the beginning of mesh stretched out in a few hours after the measured data than the beginning of the measured values is small, this is normal, the specific reference to the factory rebound value data product manufacturers) .
