RF 15DBi 3G Antenna Panel Mount aerial With 5m Cable SMA connector For Huawei modem Device gsm antenna cable

RF 15DBi 3G Antenna Panel Mount aerial With 5m Cable SMA connector For Huawei modem Device gsm antenna cable
  • Продавецshop.widaryanto.info
  • Список ценUS $27.72piece
  • Продажная ценаUS $27.72piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (598)

Oписание продукта

Click to More Antenna

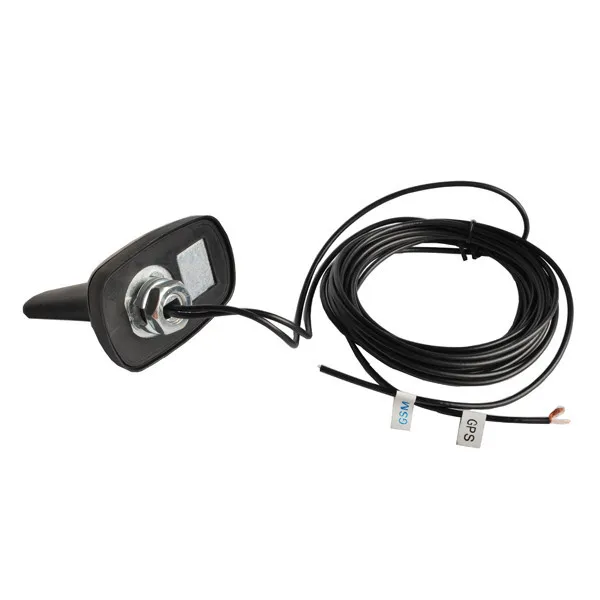

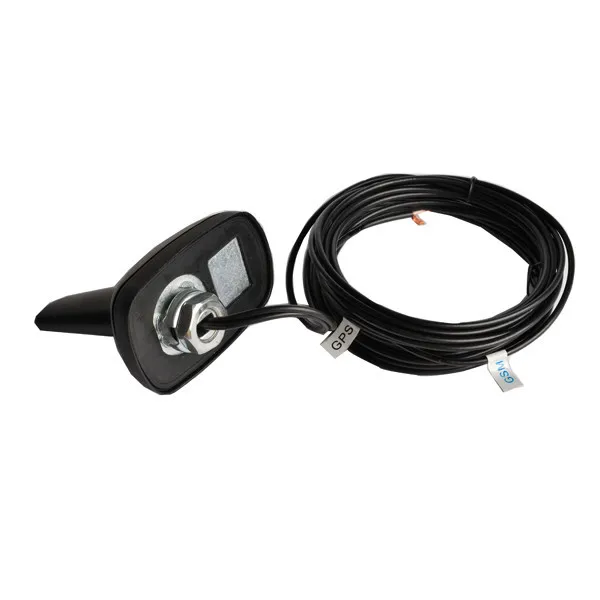

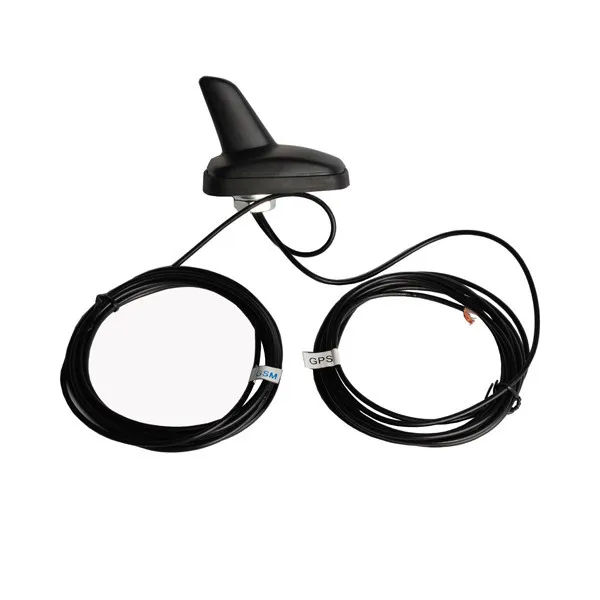

Superbat GPS+GSM Shark Combined Antenna SMA Male Connector for GPS Receivers Mobile Applications GPS 1575.42MHz GSM 850 900 1800 1900Mhz Antenna

100% Brand NEW high quality

Product Description

Dielectric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width  positiveor negetive5 MHz
Impedance 50 ohm
Polarization RHCP

GSM Antenna
Center Frequency 850 900 1800 1900Mhz
Typical Gain 2dBi plus or [email protected]
2dBi plus or [email protected]
1dBi plus or [email protected] plus or [email protected]
V.S.W.R 2.0:1
Impedance 50 ohm

LNA Filter
LNA Gain 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation
V.S.W.R less than2.0
DC Voltage 2.7V 3.0V 3.3V 5.0V 3.0V to 5.0V other
DC Current 11mA Max
Mechanical
Weight less than 270gram
Size 84*53.8*62mm
Cable GPS:RG174 2meter default, 5meter long or other
GSM:RG174 2meter default, 5meter long or other

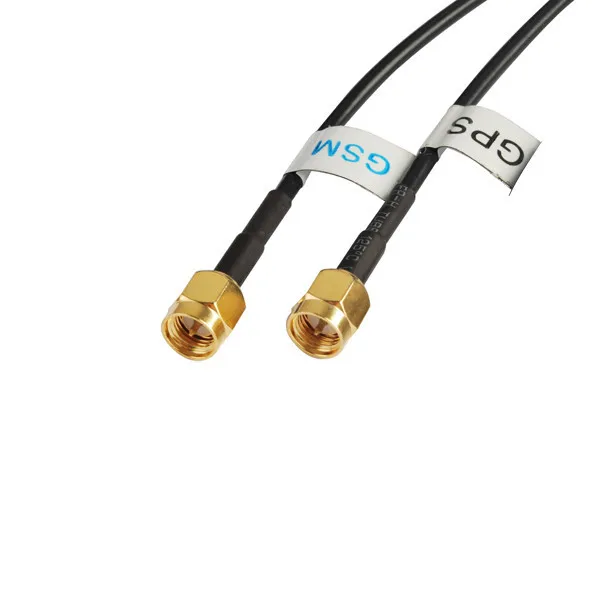

Connector GPS:SMAMale default SMB SMC BNC FME TNC MCX  MMCX or other
GSM:SMAMale default SMB SMC BNC FME TNC MCX MMCX or other please contact us

Mounting Magnetic Screw Mounting
Housing Black

Environmental
Working Temp.negetive40 degreed to positive 85 degreed
Storage Temp. negetive45degreed to positive100 degreed
Vibration Sine sweep 1g 10 to50 to10Hz each axis
Humidity Humidity95 percent to100percentRH
Weatherproof 100 percent Waterproof
