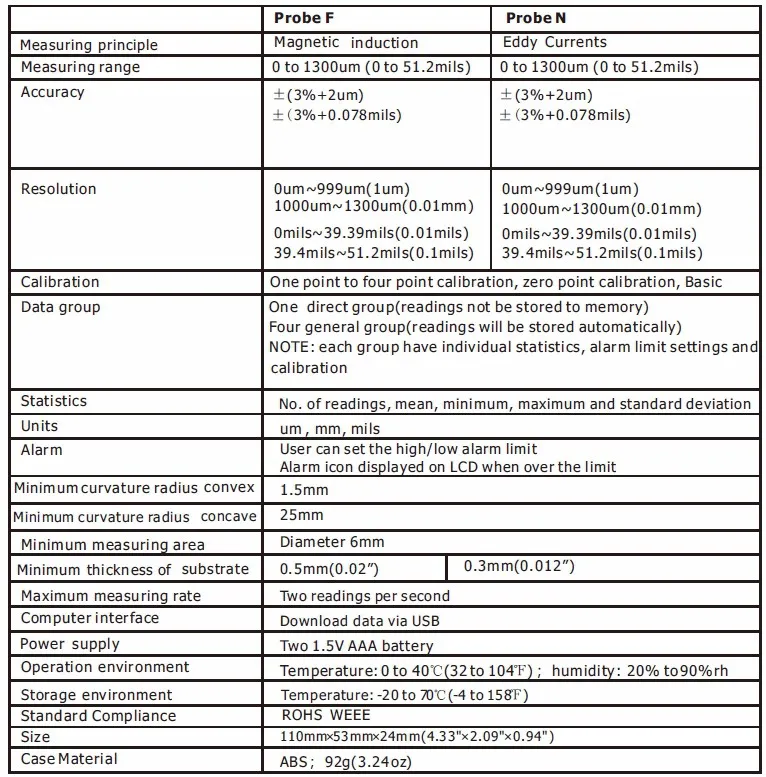

BSIDE CCT01 Professional Digital Coating Thickness Gauge

CCT01-5 (2)CCT01-4CCT01-2CCT01-3CCT01-6CCT01-1


Product working principle / introduction:

The internal probe works on both principles, magnetic induction and the eddy currents. It automatically detects the substrates type, calculates the coating thickness and displays fastly. There are five data groups that each group has individual statistics, alarm limit settings and calibration. User can recall and delete specified readings easily.

Important Reminder:  The product has two language specifications (English/German) and (Russian), the English version supports English and German display.   The Russian version only supports Russian display!


Main Features:

- 128 x 128 LCD display, standard menu operations
- Two measure modes: single and continuous
- Two group modes: direct ( DIR ) and general ( GEN ), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group
- Zero point calibration and multi-point calibration ( up to 4 points ) for each group
- The users can recall, delete specified readings, or delete group readings
- Statistics display: mean, minimum, maximum and standard deviation
- Three probe modes: auto, magnetic and eddy current
- User can set high or low limit alarm for each group
- Power off automatically
- USB interface for data transmission
- Low battery and error indication

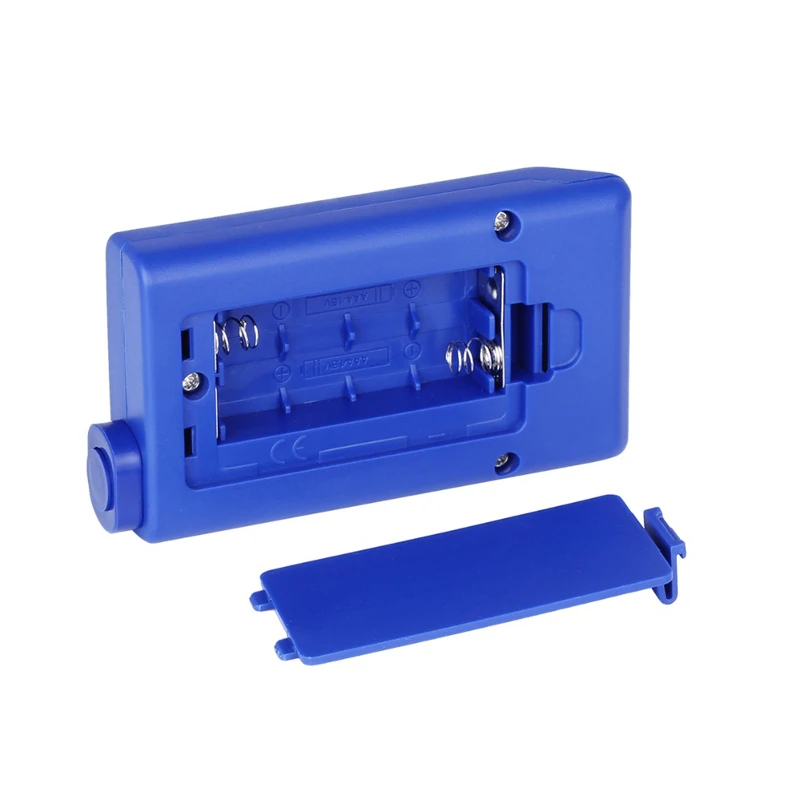

- Powered by 2 x AAA battery ( not included )
Package Includes:
1 x The Coating Thickness gauge
1 x Aluminium substrate
1 x Standard foil
1 x USB cable
1 x Technical manual

BSIDE CCT02 Mini Digital Coating Thickness Gauge



This gauge is ultra low cost coating thickness gauge and can mainly be used tomeasure car’s paint coating thickness. It is used for non-destructive coating thickness measurement of non-magnetic coatings on steel and insulating coatings on non-ferrous metals.(This product is only available in English.)
Measuring principle: Eddy current(F+N)
Measuring range: 0~2mm
Accuracy: ±(2%+0.02mm)
Resolution: 0~500(1um) 501um~2000um(0.01mm)
Units: um, mm, mils
Power supply: Two 1.5V AAA battery
Standards/Certificates: CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003
Storage environment: Temperature: -10 to 60℃; humidity: 20% to 90%rh
Operation environment: Temperature: 0 to 50℃; humidity: 20% to 90%rh
Size: 89mmX49mmX21mm
Weight: 45g
Case material: ABS

Measurement Step:

Step 1. Prepare the sample to be measured.
Step 2. Press POWER key to power on, and keep probe away from any metal.
Step 3. Reference to the “Zero Calibration” if need to calibrate the gauge.
Step 4. Start measuring. Place the probe on the sample vertically and rapidly,
and after one beep, raise the probe rapidly. Readings will be display on LCD.
Step 5. Do next measurement according to step 4.
Step 6. Press POWER key to power off. If not any operations within 2 min.,
the gauge will power off automatically.

Package Includes:

1 x The Coating Thickness gauge
1 x Aluminium substrate
1 x User manual

The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
